BT6 ASTM Titanium Mill Products Titanium Alloy Forging Blocks / Disc for Dental
Titanium has low density and it's strong ,lustrous, corrosion-resistant (including sea water, aqua regia and chlorine) transition metal with a silver color, so it sometimes called as the" space age metal".
Technical Data of Titanium Alloy Forging Blocks / Disc:
Density: 4, 51g / cm³
Yield strength: 375 Mpa
Tensile strength: 445 MPa
Vickers hardness: 150HV 5/30
Elongation: 10%
Titanium Alloy Forging Blocks / Disc Sizes:
Dia 98 *T 10mm
Dia 98 *T 12mm
Dia 98 *T 14mm
Dia 98 *T 15mm
Dia 98 *T 16mm
Dia 98 *T 18mm
Dia 98 *T 20mm
Dia 98 *T 22mm
Dia 98 *T 25mm
Customized Sizes: dia:20-900mm, length:<6000mm
Applications of Titanium Alloy Forging Blocks / Disc:
The heavy forging: forged ring, shaft, roller, flange, or gear is widely used for various industries For example: Metallurgy, mining, power station and so on.
Quality assurance & Inspection
Titanium Alloy Forging Blocks / Disc are trimmed and sheared smoothly, surface free from any contamination, nicks, dents, scratches, grinding marks or any other unexpected defects.
Detailed testing report could be provided separately by email/mail or along with the goods.
Titanium Grade List:
| | N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
| Gr 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Grade | Tensil strength(min) | Yeild strength(min) | Elongation (%) |
| Ksi | MPa | Ksi | MPa |
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18 |

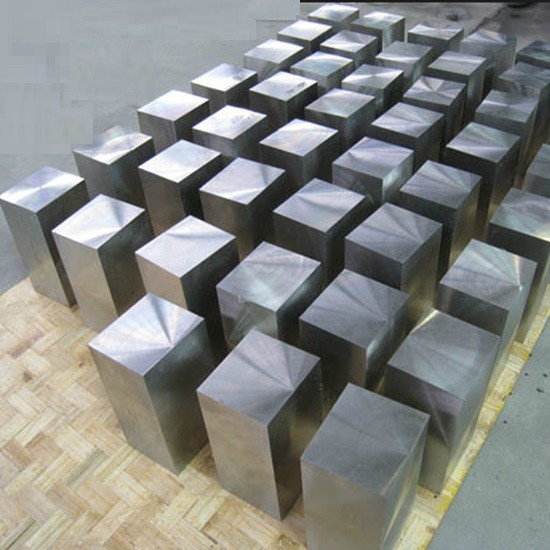

Picture Show:
