YG8 YG6 Tungsten Carbide Cutting Tools YT14 YT15 Tungsten Carbide Brazed Tips

Product Categories
Hubei Fotma Machinery Co., Ltd.
Contact Now

YG8 YG6 Tungsten Carbide Cutting Tools YT14 YT15 Tungsten Carbide Brazed Tips

  • 1
  • 2
  • 3

Brand Name : FOTMA

Model Number : A25, A30, E25 etc.

Certification : ISO9001:2000

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T, Western Union, PayPal, L/C

Supply Ability : 100000pcs/month

Delivery Time : 20-25 days

Packaging Details : Paper cartons or Plywood boxes

Material : Cemented Tungsten Carbide

Material Grade : YG6, YG8, YT14, YT15 etc.

Surface : Sintered blanks, machined

Application : Be brazed onto other tools for cutting or machining

OEM : Acceptable

Hardness : ≥89HRA

Contact Now

YG8 YG10 Tungsten Carbide Cutting Tools Carbide Brazed Cutting Tips Brazing Tips

Brief Introduction:

For carbide brazed tips, we can supply various sizes as per customers' requirest. Welcome to share your ideal type with us. Tungsten carbide brazed tips are widely used in mining, sand, cement, metallurgy and hydropower engineering industries.

Different grades are available, such as YG6, YG8, YT14, YT15 etc.

Now we supply:

1. ISO standard and Chinese national standard brazed tips.
2. Thailand stand,JIS,DIN and special brazed tips.
3. ISO standard and DIN standard brazed tools.

Quality Control:

Every batches of material will be tested in density, HRA, TRS and magnetic saturation,
test report will be kept in our files.

We have a constant quality checks accompany the overall production process of the tungsten
carbide to assure our customers are receiving the highest quality carbide in the industry.


Advantages:

Tungsten Carbide Brazed Tips Brazed Tools:
1. Made of top-quality raw material, have more stable properties, therefore easier to braze, also extend its service time
2. Produced with precision molds, the products have better dimensional accuracy and uniform
3. Free samples available
4. Special carbide tips made exactly as per your designs
5. New users of brazed tips? Don't worry! Professional online service supports on you every working day!

Material Grades for Tungsten Carbide Brazed Tips:

Grade

Density

g/cm3

Hardness

HRA

Strength

N/mm2 Min.

Applications

ISO grade

YG6X

14.8-15

91.7-93

1600

High wear resistance and high strength; machining chilled cast iron and refractory steel, finishing of normal cast iron

K10(ANSI C-2)

YT15

11.2-11.4

92-93

1350

Good wear resistance, with normal impact resistance; Semi finishing and finishing steel, cast steel, alloy steel.

P10

YT14

11.3-11.6

91.3-92.3

1450

High in impact resistance and strength; Semi roughing and semi finishing of steel, cast steel and alloy steel.

P20-P30

YG6

14.8-15

90-92

1650

Good wear resistance, resistance to impact and thermal shocking. Semi finishing and finishing of cast iron, nonferrous metal, alloy and nonmetallic material.

K15-K20

YG8

14.3-14.5

91.5-92.5

1750

Good wear resistance, high bending strength and high resistance to binding. Machining of refractory alloys, stainless steel and high manganese steel, etc.

K20-K30

YW1

13.25-13.5

92-93.2

1420

A versatile grade, good in red hardness, able to endure normal impact load; machining of refractory steel, high manganese steel, stainless steel, also suitable to the normal steel and cast iron.

M10/P10

YW2

13.15-13.35

91.3-92.3

1600

Good wear resistance and high strength, able to endure high impact load; Roughing, semi finishing of refractory steel, high manganese steel, stainless steel and high alloy steel, also suitable to the normal steel and cast iron.

M20/P20-30

YW2A

12.85-13.05

91.5-92.5

1670

Good red hardness, able to endure high impact load, is a all-purpose grade. Roughing, semi finishing of refractory steel, high manganese steel, stainless steel and high alloy steel, also suitable to cast iron.

M15/P15

ZK10UF

14.75-14.95

92.6-93.6

1690

Fine-grained alloy, good wear resistance and high strength. Semi-finishing and finishing of cast iron and nonferrous metals. It is the unique material for making of solid carbide tools for holing.

K10-K15

ZK30UF

14.3-14.55

91.2-92.2

2180

Fine grain grade. Excellent wear resistance, high in strength and impact resistance. Machining of cast irons, nonferrous metals and non-metallic materials. It is the unique material of solid carbide tools for holing.

K30

Note: The specification dates just the standard, the actual specification for the products are much better than the standard.

Suggestion: We would like to recommend suitable grade depending on your machining materials.

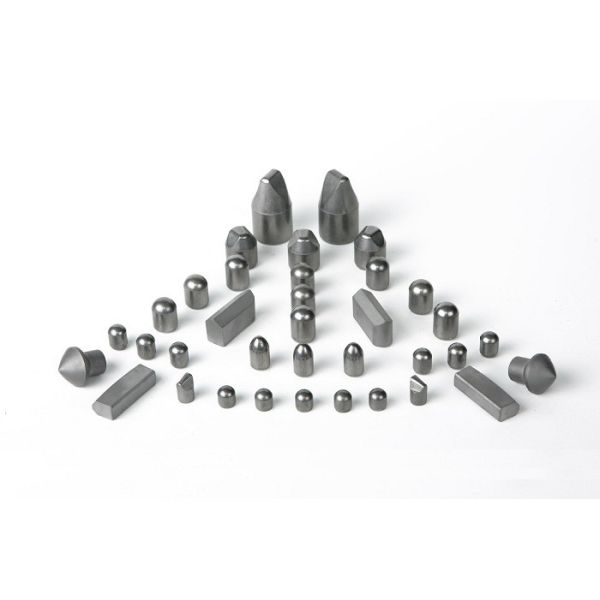

Picture Show:

YG8 YG6 Tungsten Carbide Cutting Tools YT14 YT15 Tungsten Carbide Brazed Tips
